LONG ARM ADJUSTABLE SHORTEST A010240

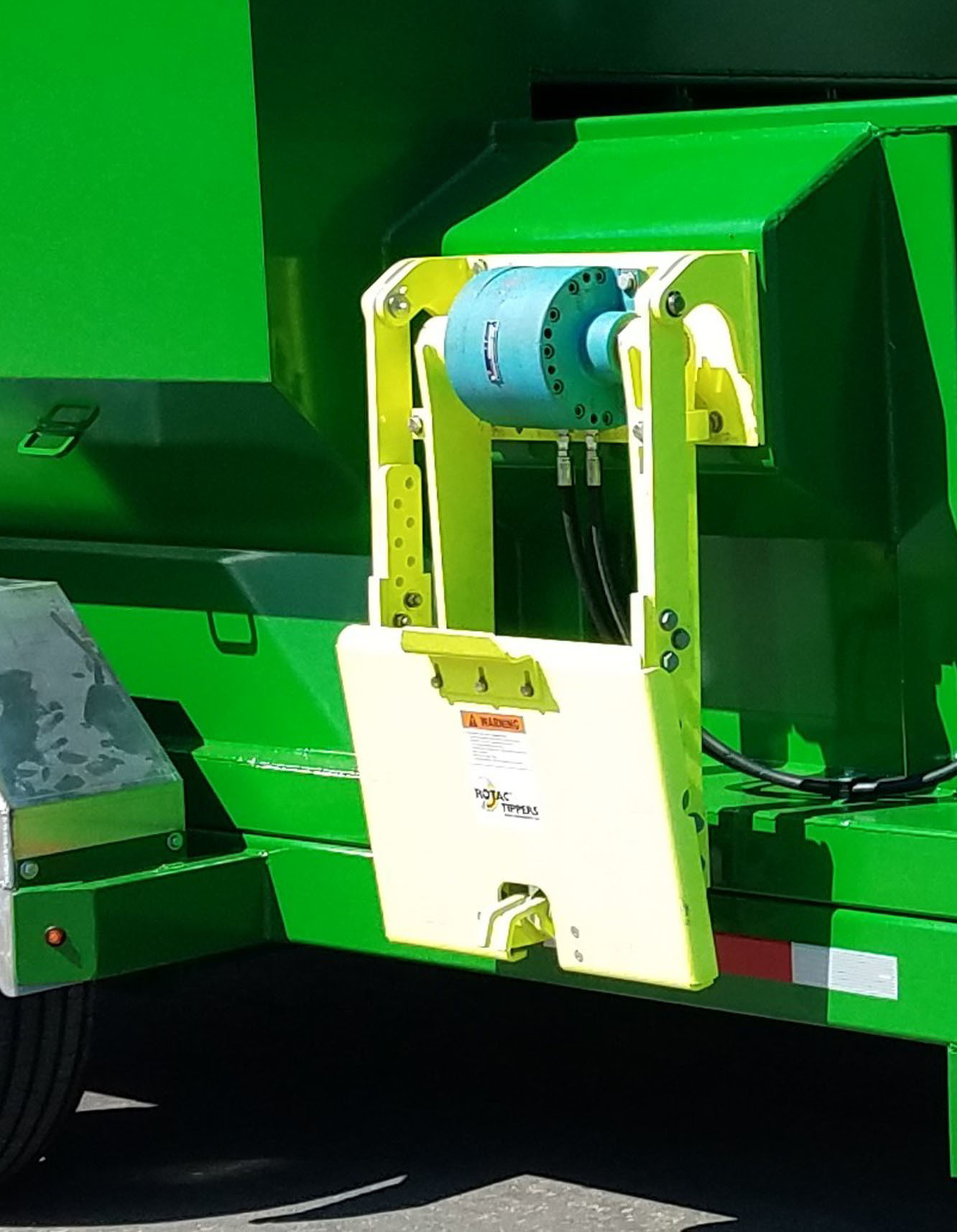

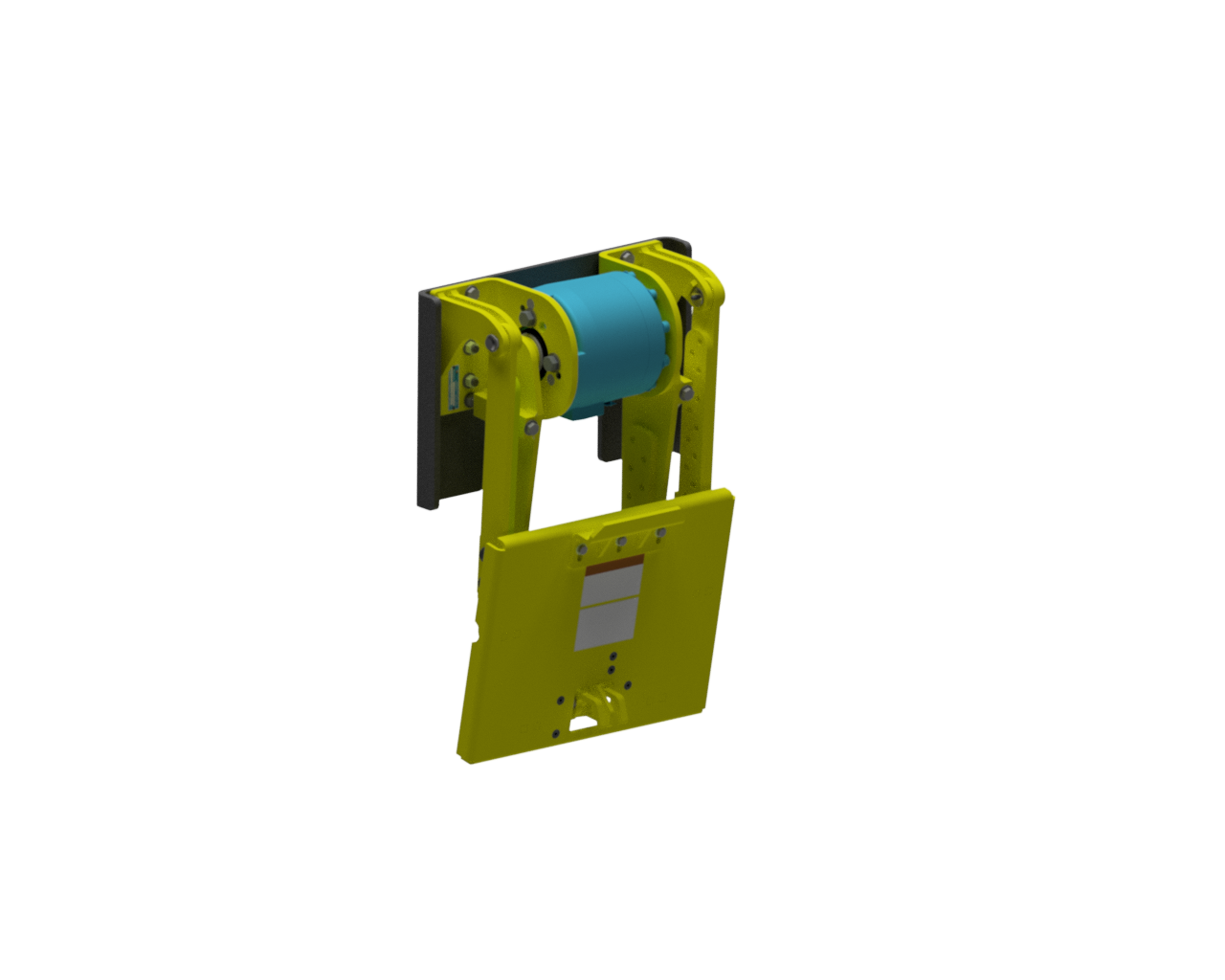

The Rotac® Long Arm Adjustable Tipper

Built with reliable Rotac® brand rotary vane actuators, Rotac® Tippers offer:

  • The most torque and lift per hydraulic input pressure of any tipper on the market today
  • The same speed and dependability that is associated with Rotac® Actuators
  • For use with Side-Load Trucks
  • Available in adjustable or fixed arm lengths
  • Rotac® Actuators feature only ONE MOVING PART
  • 2 Year Manufacturer Warranty

ADDITIONAL MODELS in this series

Long Arm Adjustable Tipper

Subscribe to our channel

IMPORTANT NOTES:

  • LIFTS OVER 800 LBS 80" HIGH - Industry Leading 40,500 in/lbs torque at 3000 psi
  • MOUNTING VERSATILITY - Allows for a range of mounting heights from 46 - 62" to accommodate a variety of truck chassis heights
  • ROTARY VANE ACTUATOR - Provides maximum lifting capacity and optimized cycle time to ensure reliable and efficient operation
  • CART COMPATIBILITY - Designed for carts with US 2-Bar; ANSI Z245.60-2008, Type B Domestic Carts
  • MADE IN THE USA - Manufactured, assembled and tested in BERNE, INDIANA
  • 2-YEAR MANUFACTURER WARRANTY
